Genuine Silicon Controlled Rectifier DO-15 For Automotive Electronic Product

Brand Name : Huixin

Model Number : HER157 DO - 15

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 3000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 3000pcs/reel/box

Type : High Efficiency Silicon Rectifiers

Package : DO - 15

Package Type : Axial

MPQ : 3000PCS

IF : 1.5A

VRRM : 800V

VF : 1.7V

Trr : 75ns

Contact Now

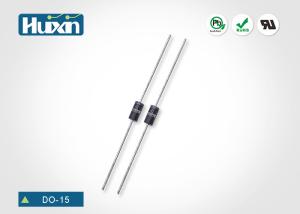

DO - 15 High Efficiency Silicon Rectifiers For Automotive Electronic Product

Genuine Silicon Controlled Rectifier DO-15 For Automotive Electronic Product

HER151~HER158 DO-15 Datasheet.pdf

Features:

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Open Junction Chip
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Polarity symbol marking on body
  • Mounting Position : Any
  • Weight: 0.0116 ounce, 0.33 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS HER151 HER152 HER153

HER154

HER155 HER156 HER157 HER158 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 300 400 600 800 1000 Volts
Maximum RMS Voltage VRMS 35 70 140

210

280 420 560 700 Volts
Maximum DC Blocking Voltage VDC 50 100 200

300

400 600 800 1000 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV)

1.5

Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 50 Amps
Maximum Instantaneous Forward Voltage at 1.5A VF 1 1.4 1.7 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR 10 μA
TA=125°C 500
Maximum Reverse Recovery Time(Note 1) Trr 50 75 ns

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
